Wiring A

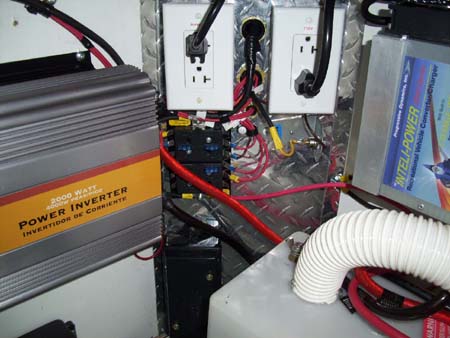

All 12v circutes seperately fused and use proper gage wire. HD diode installed to prevent trailer from charging vehicle battery. Outlets marked as outside 110v or 110v inverter power. Inside trailer to vehicle junction box.
